Ironworks Out-Swing Vault Door IWVD8035 | 80"H x 35"W x 8.25"D

Current Stock:
Curbside Delivery Approx. 13-15 Weeks
Calculated at Checkout
Made In USA:
Fire Rating:
120 Minutes

Factory-Installed Lock Option required
Standard or Reverse Open required

Rhino Vault Doors will elevate your home security to a whole new level!


  • Limited Lifetime Warranty
  • Free Repair or Replacement After Burglary

Fire Protection:

  • 120 Minute Fire Protection at 1400°F (Fire Ratings Can Vary Based on Installation and Room Construction)
  • Dual Intumescent Expanding Fire Seals

Security Features:

  • UL® Listed Manual Lock
  • 5.39” Thick Door with Full Coverage ¼” Steel Face
  • 10 Gauge Thick Steel Outer Door Frame
  • 12 Gauge Formed Steel Construction
  • 1/4" Thick Steel Outer Door Frame
  • Ball Bearing Drill Plate and Spring Loaded Relocker Protects the Lock
  • Tempered Glass Relocker with Remote Spring Loaded Relocker Deadbolts the System
  • Patented Anti-Tamper Clutch Handle
  • Large 1.25” Diameter Doorbolts, 3-Sided Protection, 16 Doorbolts Total
  • Internal Release and Panic Room Lock-In Mechanism
  • Install with Expansion Anchors or Lag Bolts for Additional Security (Not Included)

Style and Function:

  • 1030 Lbss (Approximate Net Weight)
  • Clamshell Design Simplifies Installation and Designed to Fit a Variety of Wall Types, 8.5” Thick
  • Industrial Cast Hand Wheel and Unique Antiqued Finish to Compliment Any Decor
  • Standard and Reverse Opening Design Options

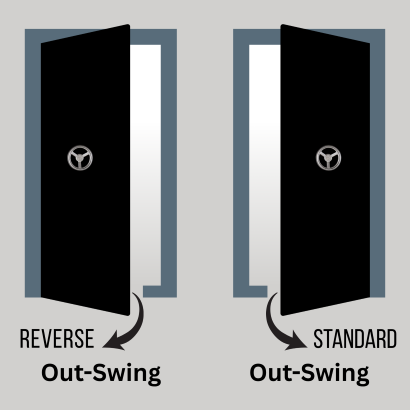

door swing options

Walls thicker than 8.5" will require longer bolts and clamshell may not cover entire interior door frame. Out-swing vault doors may have a concealment panel ordered to cover entire interior door frame on openings thicker than 8.5" and up to 11.5".

Items may require some assembly.

Colors may vary slightly from images shown.

Made in USA with global components.

Curbside delivery with standard shipping via common carrier to the contiguous United States, signature required. Carrier will call to set up a delivery time. Extraordinary delivery requirements may necessitate an additional fee from the carrier.
